DB15 Output Power Parameters

Output voltage 12VDC

Output current 500mA(Max)

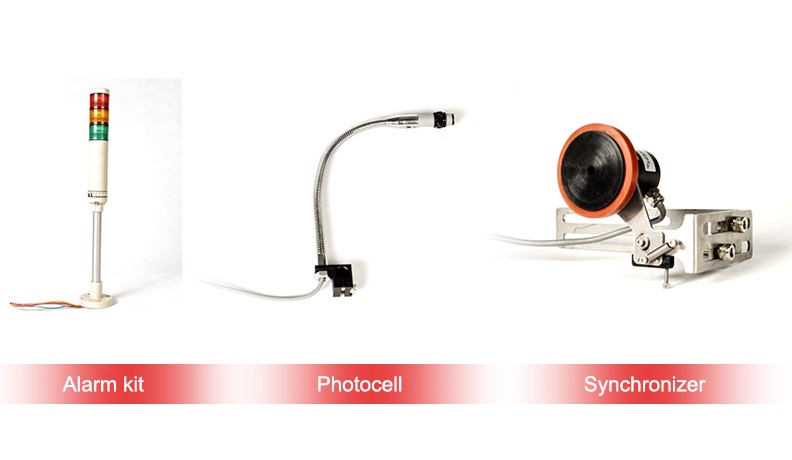

Synchronizer Electrical Property Parameters

Operating voltage 12VDC

Output type Open set(OC) output or open drain(OD) output

Driver current greater than 15mA

Pulse count 2500 P/R

Synchronizing wheel diameter 67.4mm (300DPI)，50.6mm（400DPI）

External Photocell Electrical Property Parameters

Operating voltage 12VDC

Output type Open set(OC) output or open drain(OD) output

Driver current greater than 15mA

Output level Default high level output, valid low lever, valid pulse width greater than 2msec; Two valid signal interval greater than 2msec.

Alarm Kit Technical Parameters
Specification and demension φ40*275mm
